Smelting - from offcuts to metal ingots

©2015 Fiona Dempster - Silver-plated copper begins to melt at 1085C
On Friday I did my first metal melt with my small electric furnace. In Friday's post I shared some of the outcomes of that experience - not perfect but a good first effort and a lot of lessons learnt.

The whole process really started because I wanted to use the small and odd shaped silver plated offcuts (silver over copper and silver over brass or EPNS). Since I purchased the furnace a couple of weeks ago I have been cutting some offcuts into small fragments that would melt more quickly in the furnace. I have kept the pieces in separate buckets - silver over copper; and silver over brass.

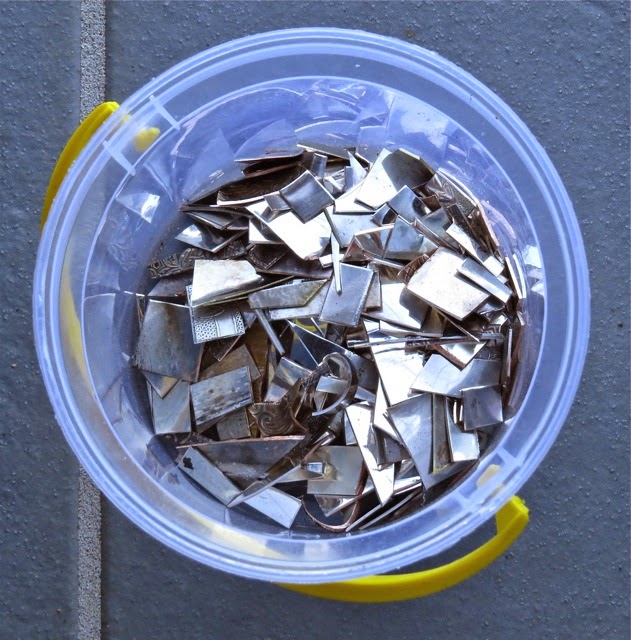

©2015 Fiona Dempster - Small pieces of silver-plated copper
The furnace is quite compact - the biggest crucible I have is supposed to hold 3kg of molten gold when full. The crucibles are solid graphite - which I had cured during the week - takes a couple of hours.

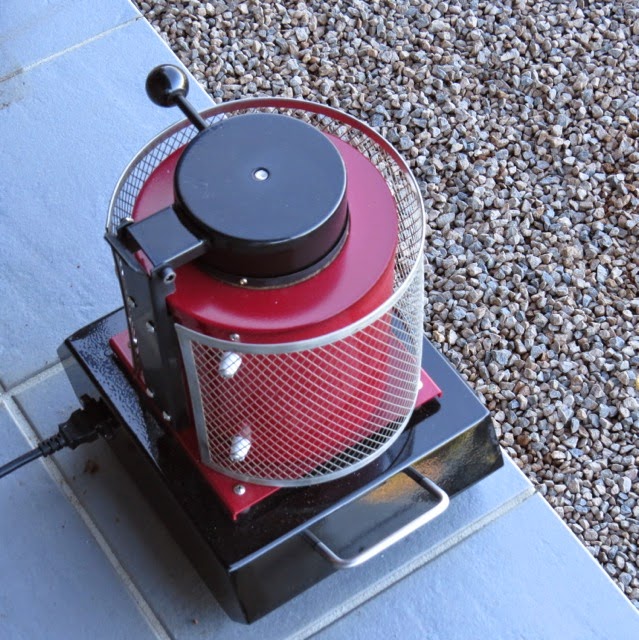

©2015 Fiona Dempster - Small electric metal melting furnace

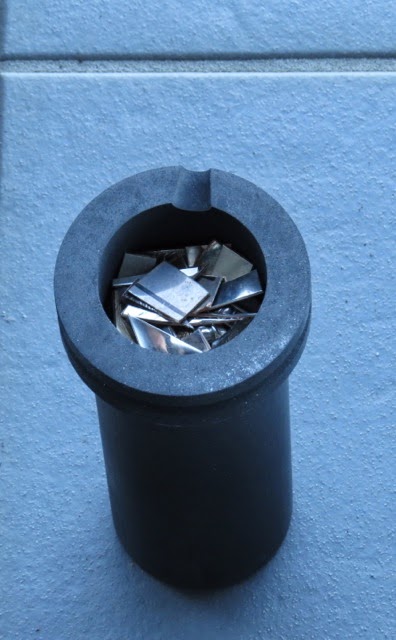

©2015 Fiona Dempster - Cured graphite crucible full of silver-plate offcuts
My first smelt was with the silver over copper. These were place in the crucible; and were topped up when the metal started to melt at about 1100C. Pouring was a new experience - white hot crucible held with tongs and leather glove. But lovely to see the metal running into the graphite moulds which had been heated but not fully cured.

©2015 Fiona Dempster - White hot crucible - metal and borax flux fumes being given off - all the more reason to do this outside on a solid tiled and well ventilated work area
©2015 Fiona Dempster - Molten metal
As you can see from the heart shot - the mould was basically on fire with the heat of the metal - it did not burn second time around as it had cured.

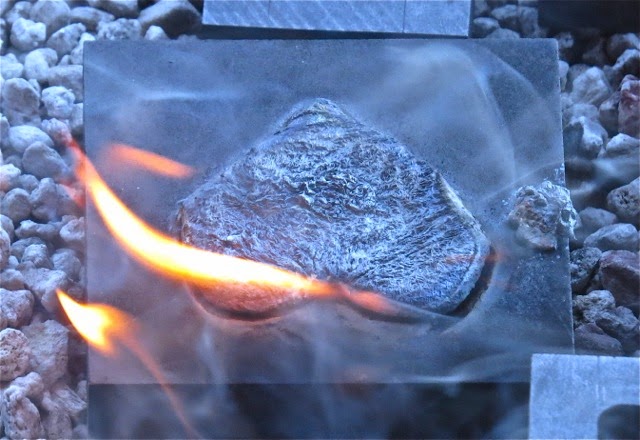

©2015 Fiona Dempster - Heart on fire - graphite mould curing itself!!!
The hot metal needed to be quenched in water - still very very hot even after setting.

©2015 Fiona Dempster - The silver-brass heart quenched
And the outcomes look pretty grubby initially; but as you know from Friday's post they polish up well.

©2015 Fiona Dempster - Front of the silver-copper heart in the rough on rust

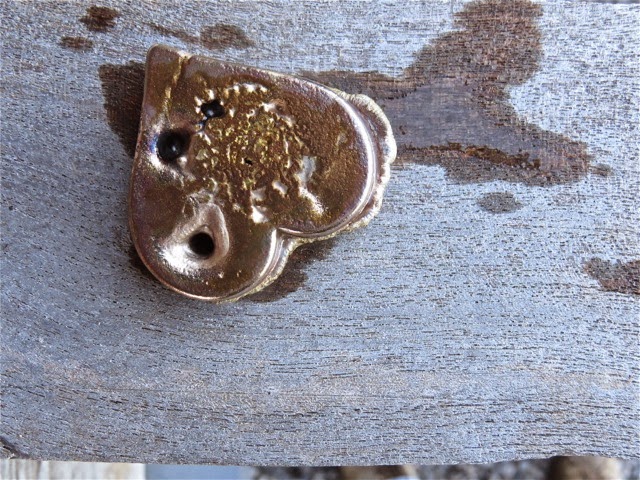

©2015 Fiona Dempster - Back of the silver-brass heart on wood after quenching
Some of the lessons learnt include: good to have two pairs of hands; good to direct gas flame onto the mould and the pouring metal so it stays nice and liquid; good to have a full face mask to deflect the heat; and good to have moulds with wide apertures when one is a rank novice. Still I'm sure the second round in a few weeks time will be interesting.

Thanks to Fiona for the photos (and there are many more) - but next time I think she will be the second pair of hands.

The metal is an amalgam of silver-copper and silver-brass - both have there own rich beauty.
